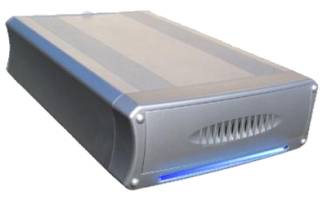

These 5.25" External Enclosures shall provide you with the best and newest features for your Mass Storage and Data back up needs. You can connect PM-525U2 to your computer using either USB 1.1/2.0 or Firewire connectivity. PM-525U2 is easy to assemble and also suitable for mounting most 3.5" IDE hard disk drive or IDE Optical Drives like CD-Rom, DVD drive, etc. The case uses regular PC power cable. Above all, this new PM-525U2 has 2 built in Ball Bearing Fans for air circulation.

Available Model No. (Color / Interface):

PM-525U2-ECS(Silver/ USB 2.0) PM-525F2-EOS(Silver/IEEE-1394A) PM-525C2-ETS(Silver/Combo)

PM-525C2-EPS (Silver/Combo)

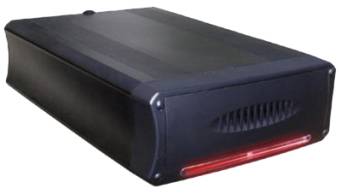

PM-525U2-ECB(Black/ USB 2.0) PM-525F2-EOB (Black/IEEE-1394A) PM-350C2-ETB(Black/Combo)

PM-350C2-EPB (Black/Combo)

  • Comes with a retail box.
  • Can be used with 3.5-inch IDE drives (internal)
  • Can be used with 5.25" IDE Optical Drives like DVD dirve.
  • Fast and easy to disassemble and reassemble.
  • Interface: USB 2.0, FireWire, Combo
  • Transfer Rate: USBV2.0: 480 Mega Bits / Sec, Firewire : 400 Mega Bits / Sec
  • Works with PC and Mac . (It is recommended to use FireWire connectivity if you are to attach a CD burner or DVD burner with a Mac).
  • Plug and Play
  • Hot-swappable connection
  • Supports Mass Storage up to 300GB Hard Disk Drives or above
  • Supports up to UDMA/133
  • No Hard Drive RPM upper limit
  • 2 Ball Bearing Fans (size 60mm) for air circulation.

System and other requirements

  • Windows 98SE/ME/2000/XP
  • Mac OS 9.X / 10.X or above (Ver.10.3,10.1,10.12)
  • USB 2.0/1.1 interface
  • Available power outlet
  • 3.5-inch internal IDE device
  • For Window ME/2000/XP and Mac 9.0 or higher use build in driver. (No need to install driver)
  • Window 98SE driver installation required

Dimension and Warranty

  • Dimensions: 250L x 172W x 63H mm.
  • Standard warranty: 1 year warranty
  • 10 External Enclosures in one Master box.

Package includes

  • One 5.25" USB 2.0 and/or FireWire external enclosure.
  • Internal Power Supply 100-240 Vac.
  • One USB cable, if USB Enclosure.
  • One Firewire cable, if FireWire Enclosure.
  • One USB cable + FireWire Cable, if Combo enclosure.
  • Driver on CD
  • User guide.
