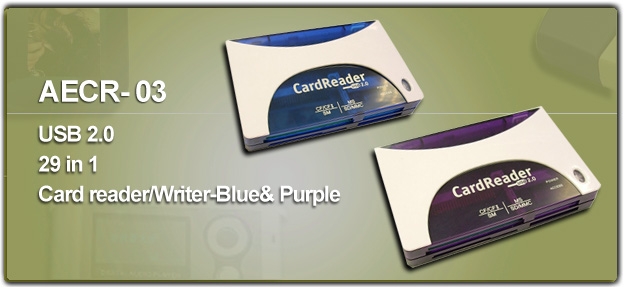

AECR-03 Blue (Top) and AECR-03 Purple (Bottom)

AECR-03 Compatible Cards

Compact Flash Card Slot:

CF I, CF I Ultra II, CF II, CF I Extreme, MicroDrive, Magic-Store Driver

Smart Media Slot:

SM Card, SM RAM Card, XD Card

Memory Stick Slot:

MS, MS Pro, MS Pro Extreme, MS Pro Ultra II, MS Pro Duo Ultra II, MS memory Select Function, MS Duo, MS-Magic Gate, MS Pro Magic Gate, MS-Magic Gate Duo, MS Pro Duo Magic Gate, MS Rom.

Secure Digital Slot:

SD, SD Ultra II, SD Extreme, Multi Media Card, RS MMC

With card adaptor, AECR-02 can also read:

Mini SD Card, RS MMC, and T-Flash

AECR-03 Features

• USB 2.0 and USB 1.1 compatible
• Allow data exchange in different card slot
• LED status indication: power on (Green) or busy (Red)
• USB powered, no external power (AC Adapter) required
• External box designed for your pocket
• Support Hot-Swapping
• Plug & Play on Most Operating Systems

AECR-03 Specification:

• Data Transfer Rate: USB 2.0 High-Speed at 480MB/Sec; USB 1.1 Full-Speed at 12MB/sec.
• Card Data transfer rate: 700~4000Kb/s Max.
• DC +3.3V from USB cable directly
• Operating temperature: 0 o C~70 o C
• Storage temperature: -40 o C~70 o C
• Relative Humidity: Operating RH: 50% Storage RH: 95%(Max without condensing)
• IBM Compatible PC and Mac PC

AECR-03 Accessories:

• Card Reader X1
• USB cable X1
• Driver and Manual Software CD X1
