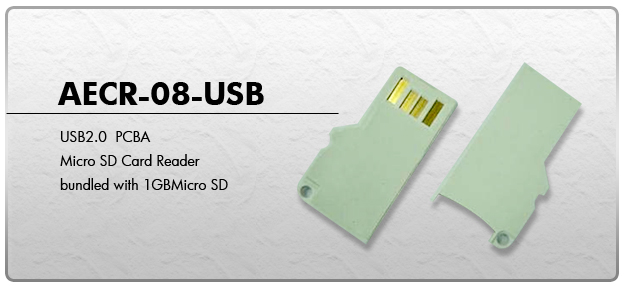

  • One sockets support : Micro SD Card.
  • Mini size design for mobile use.
  • Active LED indicators busy (read/write) equipped.
  • Supports USB2.0 Hi-Speed (480Mbps) Model/USB 1.1 Full-Speed (12Mbps) Model.
  • Supports Plug & Play.
  • USB powered; no external power required.


  • One socket supports: Micro SD Card.
  • Supports Hot-Swapping
  • USB transfer rate : USB2.0 High-Speed 480MB/Sec
  • USB1.1 Full-Speed at 12MB/sec.
  • Supports SD1.1(High-Speed), SD2.0(High Capacity ), MMC4.1 Specification.
  • Internal USB Rev. 2.0 / 1.1. device
  • DC +3.3V from USB cable directly
  • Maximum operating range at High speed (480Mhz): 55mA
  • Operating temperature: 0oC~70oC
  • Storage temperature: -40oC~70oC
  • Relative Humidity: Operating RH: 50% Storage RH: 95%(Max without condensing)
  • Size: 12mm x 32mm x 23mm


  • IBM Compatible PC and Mac PC
  • USB Host card or USB Hub device
  • OS support: Win98/ME/2K/XP, MAC OS 9.x/10.x Vista,
  • Linux 2.4 above, & Red Hot Linux 8.0, WinCE4.x
  • Applied: CE, FCC, RoHs
