Overview

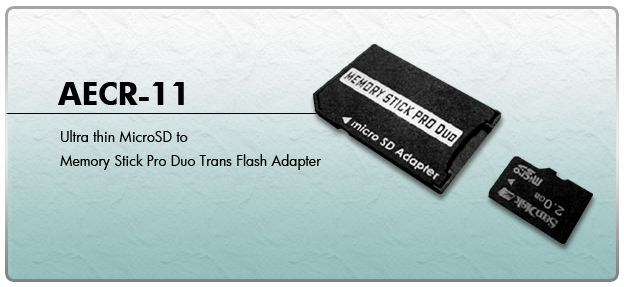

The microSD to MS Pro Duo adapter is an adapter that supports the microSD card to MS Pro Duo
interface. The microSD to MS Pro Duo adapter also supports the Memory Stick PRO specification ver1.4 without security and SD memory card specification v1.1.

Key Feature

• Patented microSD(SD/MMC) to MS-Pro interface adapter.
• Card Supported SD1.01 and SD1.10
• Host Supported MS-Pro ver1.4
• Firmware Update Capability Via external serial EEPORM

Specification

• Support microSD(SD1.01 & SD1.10) to MS-Pro Duo(ver1.4) adapter.
• Supports Hot-Swapping
• USB transfer rate : USB2.0 High-Speed 480MB/Sec
• USB1.1 Full-Speed at 12MB/sec.
• Operating temperature: 15oC~60oC
• Storage temperature: -40oC~100oC
• Humidity: Operating RH: 25~85% Storage RH: 95%(Max without condensing) or less

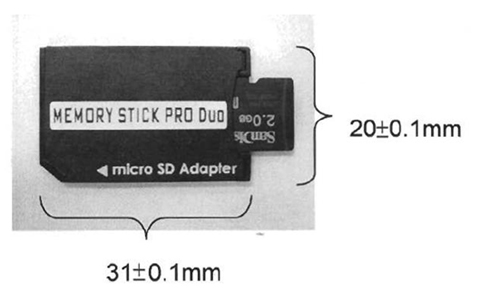

• Size: 31mm * 20mm


Requirements

• IBM Compatible PC and Mac PC with MS-Pro Duo Reader.
• OS support: Win98/ME/2K/XP, MAC OS 9.x/10.x,
• Linux 2.4 above, & Red Hot Linux 8.0, WinCE4.x
• Approval: CE, FCC, RoHs
