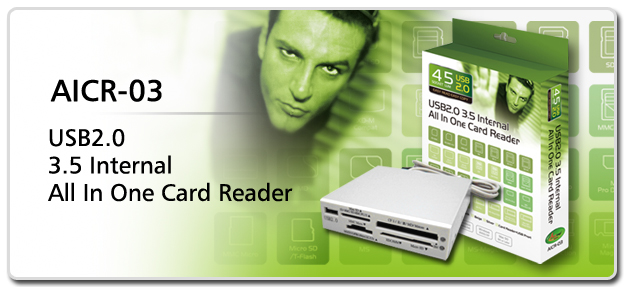

Model    : AICR-03
Name    : USB2.0 3.5” Front Panel
All in 1 Card Reader + USB Port
Packing Including:
  1. 3.5” Panel Reader x 1.
  2. Screw Set x 1
  3. Driver CD  x 1
  4. Internal Connecting Cable x 1

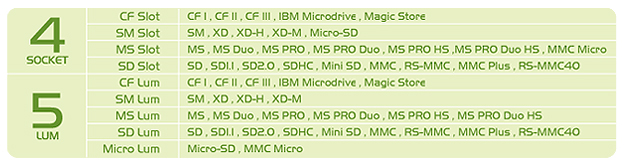

˙ Four sockets support :
CF Slot : CF I, CF II, IBM Microdrive, Magic Store。
SM Slot: SM, XD, XD-H, XD-M, Micro-SD
MS Slot: MS, MS Duo, MS PRO, MS PRO Duo, MS PRO HS, MS PRO Duo HS, MMC Micro..
SD Slot : SD, SD1.1, SD2.0, SDHC, Mini SD, MMC, RS-MMC, MMC Plus, RS-MMC4.0.

˙ Five LUM support :
1. CF lum : CF I, CF II, CF3.0, IBM Microdrive, Magic Store。
2. SM lum: SM, XD, XD-H, XD-M, Micro-SD
3. MS lum: MS, MS Duo, MS PRO, MS PRO Duo, MS PRO HS, MS PRO Duo HS.
4. SD lum: SD, SD1.1, SD2.0, SDHC, Mini SD, MMC, RS-MMC, MMC Plus, RS-MMC4.0 .
5. Mini lum: MMC Micro, Micro-SD
˙Allows One USB Port support external USB device
˙Support All cards without adaptor.
˙Support lum-to-lum read/write operation.
˙Two active LED indicators of power and busy (read/write) equipped.
˙Support USB2.0 Hi-Speed (480Mbps) Model/USB 1.1 Full-Speed (12Mbps) Model.
˙USB powered; no external power required.
˙USB transfer rate : USB2.0 High-Speed 480MB/Sec
USB1.1 Full-Speed at 12MB/sec.
˙Card Data transfer rate : 700~4000Kb/s Max.
˙Internal USB Rev. 2.0 / 1.1. device
˙Operating temperature: 0oC~85oC
˙Storage temperature: -40oC~150oC
˙Relative Humidity: Operating RH: 50% Storage RH: 95%(Max without condensing)
˙Runs at 12MHz crystal.

REQUIREMENTS:
˙ OS:  WindowsME/2000/XP and Mac OS X; Windows 98/2000(SP1/SP2) and Mac OS 9 drivers are available.
˙ IBM Compatible PC and Mac PC
˙ USB Host card or USB Hub device
