Description:
• FM Converter
• Extra SD Memory Card slot supports extended memory
• Steering remote controller
• Built-in MIC
• 1.5 in LCD Display
• Touch-Sensitive buttons
• Connects to Car Stereo System

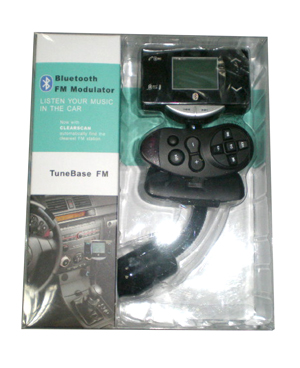

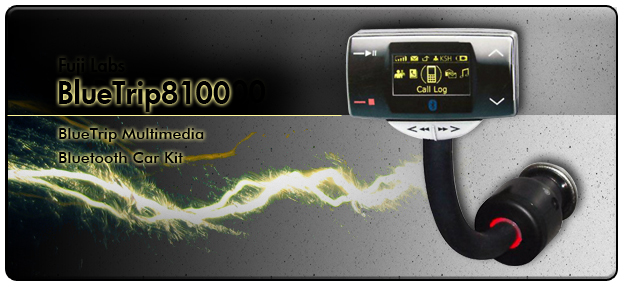

Product Introduction:
The special designed Bluetooth hands-free car kit adopts advanced capability with professional Bluetooth module and OTG/MP3 decode chip, it can decode music files which you download to SD card and USB flash, and then transit to car audio through FM wireless transmitter. If your mobile phone with Bluetooth function, it can convert to hands free automatically when there is a call. And after communication with caller it will automatically convert back to music mode. Also it can using wireless transmit MP3 file music from your mobile phone to car stereo sound system. There is no need to change any original device of your car. You may enjoy music on the way during driving and talk over the call in hand free, so entertainment and security along with you on the way.

Specifications:
• 1.5 inch LCD display
• Talking in hands free
• Display the phone number when there is a call coming
• Excellent sound quality with D.S.P solution for echo cancellation & noise suppression (CVC technology).
• Supports the remote control to meet dials or pick up telephone
• When telephone coming the music automatic cut over to telephone conversation condition
• Broadcast music stored up (SD/MMC cards) by the automobile through car stereo system.
• Stereo Bluetooth and FM transmitter technology
• Support SD/MMC card.
• Support MP3/WMA music format
• Remember the last frequency and music, track and recall them when restarting
• Steering remote controller
• Built-in MIC
• Power from car charger
• Rated Voltage: 12V
• Power Consumption: 1W
• Work Temperature: 0-50 °C
• SNR: >60dB
• Frequency Response: 20Hz ~ 15 KHz
• Left and Right channel dB: >60dB
• Bluetooth Version: BlueCore 4
• Bluetooth Voice: With AD2P (Advance Audio Distribution Profile)
• Transmit distance: 10M
• Bluetooth Microphone effective range: 0.5 ~ 2M
• Transmit Frequency: 87.5 ~ 108 MHz
• OEM Package

Weight: 18.87 x 7.61 x 2.32 cm = 7.42 x 3 x 0.91 in

Dimension: 55*56*13.5mm


Technology Parameter:

Rated Voltage
12V
Limited voltage
9~26V
Power consumption
1W
Work temperature
0-50 °C
Support file format
MP3; WMA
SNR
>60dB
Degree of distortion
<0.1%
Frequency response
20Hz~15KHz
Left and right channel dB
>60dB
Bluetooth version
BlueCore4
Bluetooth voice
With AD2P(Advance audio Distribution profile)
Transmit distance
10M
Bluetooth microphone effective range
0.5~2M
Transmit frenquency
87.5-108MHz
Transmit frequency modulation mode
Stereo digital PLL frequency lock
Appearance size
18.87*7.61*2.32(cm)
Weight
0.14KGS
