  • USB Interface:
    USB2.0 Compliance Up To 480Mbps Transfer Rate
    USB1.1 Compliance Up to 12Mbps Transfer Rate

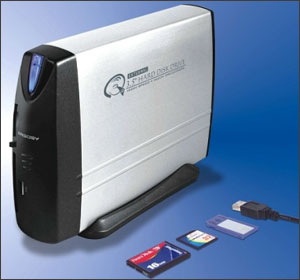

  • Hub and Card Reader Built-In:
    Built-In USB 2.0 Hub and Card Reader.
    USB Hub 2 ports USB 2.0 ex tends.
    SUPPORTS CF types I & II, MMC, SD, Memory Stick, MS Pro, 6-in-1 Card reader function.
  • HDD Support:
    IDE/ATA 3.5 Hard Disk Drives
    Single Partition Over 300GB
  • Accessories:
    USB2.0 A-B Cable 1m
    Driver & Manual CD
    Quick Installation Guide
    Mounting Screws
    Universal Switching AC Adapter
  • Power Supply:
    External AC Adapter Universal Switching Type, Input AC100~240V, Output DC12V 2.0A\
  • Front Panel:
    Blue Data Access LED Mask
    Red Card Reader LED Mask
  • Back Panel Connectors:
    USB B-Type Connectorx 1
    Power Input Jack
    Power On/Off Switch
    Kensington Lock Connector
  • Color:
    Silver + Dark Grey
    OEM Color Available
  • Dimensions:
    19.8 x 12.2 x 6.1 cm
    (7.8 x 4.8 x 2.4 inch)
  • Ordering Information:
    HD 362UUSB 2.0 Interface Only
    * Specifications are subject to change without notice.


  • Model#: HD-360U-P
  • High Speed External HDD Solution
    High Speed USB 2.0, up to 480 MB/sec burst data transfer rate
  • Standard 3.5" IDE HDD over 300GB Support
    Standard IDE Hard Drive support with single partition over 300GB
  • Aluminum Casing
    Lightweight aluminum casing with Fan-free design
  • Upright Operation
    Sleek and compact design for space saving operation
  • Plug & Play Compatibility
    Compatible with Windows98 SE, ME, 2000, XP and MAC OS 9.x or above
  • Chipset: Prolific
  • Interface Support:
    USB Interface:
    USB 2.0 Compliance, up To 480 Mb/s
    USB 1.1 Compliance, up to 12 Mb/s
  • HDD Support:
    Standard 3.5" IDE Hard Disk Drives
    Support large capacity over 300GB
  • Power Supply:
    External Universal AC Adapter
    Input AC100~240V (US or EU plug)
    Output DC12V/2.0A
  • Front Panel:
    Stylish Blue Power/Data Access LED light
  • Back Panel Connectors:
    USB B-Type Connector x 1
    DC Power In
    Power On/Off Switch
    Kensington Security Lock
  1. Accessories:
    USB 2.0 A-B Cable 1m x1
    Driver & Manual CD
    Quick Installation Guide
    Mounting Screws
  2. Color:
    Silver + Dark Grey (OEM Color Available)
  3. Dimensions:
    19.8 x 12.2 x 6.1 cm (7.8 x 4.8 x 2.4 inches)
  4. Weight: (w/o HDD)
    1.23 kg (2.7 lbs)


  • Model#: HD-360SU
  • High Speed External HDD Solution
    High Speed USB 2.0, compliant with the SATA 1.5 Gbyte/sec standard with up to 150 MB/sec burst data transfer rate
  • Standard 3.5" IDE HDD over 300GB Support
    Standard IDE Hard Drive support with single partition over 300GB
  • Aluminum Casing
    Lightweight aluminum casing with Fan-free design
  • Upright Operation
    Sleek and compact design for space saving operation
  • Plug & Play Compatibility
    Compatible with Windows98 SE, ME, 2000, XP and MAC OS 9.x or above
  • Interface Support:
    USB Interface:
    USB 2.0 Compliance, up To 480 Mb/s
    USB 1.1 Compliance, up to 12 Mb/s
    Serial ATA Interface:
    SATA Compliance, up To 150 MB/s
  • HDD Support:
    Standard 3.5 IDE Hard Disk Drives
    Support large capacity over 300GB
  • Power Supply:
    External Universal AC Adapter
    Input AC100~240V (US or EU plug)
    Output DC12V/2.0A
  • Front Panel:
    Stylish Blue Power/Data Access LED light
  • Back Panel Connectors:
    USB B-Type Connector x 1
    SATA Connector x 1
    DC Power In
    Power On/Off Switch
    Kensington Security Lock
  1. Accessories:
    USB 2.0 A-B Cable 1m x1
    SATA serial cable 1m x1
    Driver & Manual CD
    Quick Installation Guide
    Mounting Screws
  2. Color:
    Silver + Dark Grey (OEM Color Available)
  3. Dimensions:
    19.8 x 12.2 x 6.1 cm (7.8 x 4.8 x 2.4 inches)
  4. Weight: (w/o HDD)
    1.23 kg (2.7 lbs)


  • Model#: HD-360C
  • High Speed External HDD Solution
    High Speed USB 2.0, 1394, compliant up to 480 MB/sec burst data transfer rate
  • Standard 3.5" IDE HDD over 300GB Support
    Standard IDE Hard Drive support with single partition over 300GB
  • Aluminum Casing
    Lightweight aluminum casing with Fan-free design
  • Upright Operation
    Sleek and compact design for space saving operation
  • Plug & Play Compatibility
    Compatible with Windows98 SE, ME, 2000, XP and MAC OS 9.x or above
  • Interface Support:
    USB Interface:
    USB 2.0 Compliance, up To 480 Mb/s
    USB 1.1 Compliance, up to 12 Mb/s
    FireWire interface:
    FireWire/iLink/1394 Compliance, up to 400 Mb/s
  • HDD Support:
    Standard 3.5" IDE Hard Disk Drives
    Support large capacity over 300GB
  • Power Supply:
    External Universal AC Adapter
    Input AC100~240V (US or EU plug)
    Output DC12V/2.0A
  • Front Panel:
    Stylish Blue Power/Data Access LED light
  • Back Panel Connectors:
    USB B-Type Connector x 1
    1394 Connector x 2
    DC Power In
    Power On/Off Switch
    Kensington Security Lock
  1. Accessories:
    USB 2.0 A-B Cable 1m x1 6-pin
    FireWire Cable 1m x1
    Driver & Manual CD
    Quick Installation Guide
    Mounting Screws
  2. Color:
    Silver + Dark Grey (OEM Color Available)
  3. Dimensions:
    19.8 x 12.2 x 6.1 cm (7.8 x 4.8 x 2.4 inches)
  4. Weight: (w/o HDD)
    1.23 kg (2.7 lbs)


  • External 3.5" USB2.0 high speed HDD enclosure with Ethernet interface
  • Compatible with IDE HDD (ATA133) and 48-bit addressing
  • Share files over LAN as file server (SAMBA) and Internet as FTP server
  • Standalone operation, no PC required
  • Easy firmware download support
  • Easy user interface over HTTP
  • Supports Static IP, DHCP client, or DHCP server
  • Supports internet time synchronization
  • Auto Ethernet cable type detection (straight or crossed)
  • Aluminum enclosure with internal cooling fan for continuous operation
  • Auto spin-down and wakeup to conserve power and extend life of operation
  • One year warranty
  • Model No.: HD363N
  • Drive Support: 3.5" IDE HDD, 48-bit LBA (400GB Max.) 5V/1A, 12V/1.5A (Max.)
  • File System: FAT32 (max. 4GB file size)
  • Interface: 10/100Base-TX Auto MDI/MDI-X RJ-45 Connector (Link and ACT LED)
  • LED: Power and Access: Green Trouble: Red
  • Power Supply: Universal 100~240V 0.8A 50/60Hz AC 12V/2.0A DC
  • Power Consumption: 5W Max. (without HDD)
  • Dimensions: 2.4" x 4.8" x 7.8" 61 x 122 x 198 mm
  • Weight: 20 oz. 550 g
  • Operating System: Windows 98SE / ME / 2000 / XP Mac OS X 10.2 and above
  • Configuration: HTTP Base
  • Protocol: SAMBA and FTP
  • Max Sessions: FTP: 6; SAMBA: 60
  • Firmware Upgrade: HTTP and TFTP
